ACO Modular 125 PVC Infill 1m Length

£3.31 Ex VAT

( £3.97Inc VAT )

Estimated lead-time 3-5 working days.
0
WISHLIST
Wishlist
Add to wishlist Added to wishlist (0)
  • Industry leading Our sales and technical team have over 20 years’ experience working with the industry leading rainwater systems available in the UK. Industry leading
    Our sales and technical team have over 20 years’ experience working with the industry leading rainwater systems available in the UK.
  • Expert advice Our friendly service and competitive prices combined with a step-by-step support approach, make for easy rainwater product selection. Expert advice
    Our friendly service and competitive prices combined with a step-by-step support approach, make for easy rainwater product selection.
  • Nationwide delivery Our delivery partners cover the whole of the UK (mainland only) so no matter where you are, we can get your order to you. Nationwide delivery
    Our delivery partners cover the whole of the UK (mainland only) so no matter where you are, we can get your order to you.
  • Premium quality Our aluminium, steel, cast iron, plastic & GRP rainwater systems are all sourced from the leading manufacturers in the UK to ensure they are of the highest quality. Premium quality
    Our aluminium, steel, cast iron, plastic & GRP rainwater systems are all sourced from the leading manufacturers in the UK to ensure they are of the highest quality.

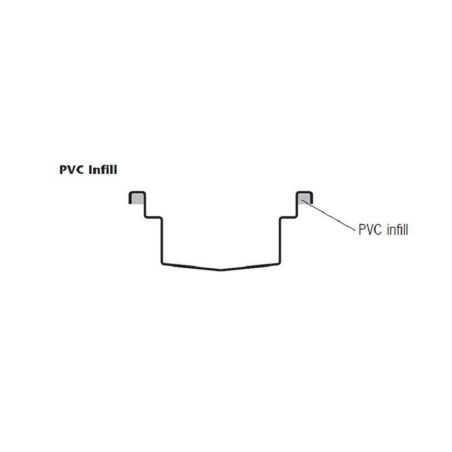

ACO Modular 125 PVC Infill 1m Length. Double quantity required for each metre of channel (including ends).
PVC Infill can be inserted into the underside of the visible edge of channels and associated component sections to provide additional strength and prevent damage to the visible edge of channels and components PVC Infill is recommended for installations that are subject to wheeled heavy loadings from trolleys or vehicles. This must be included for applications at Load Class B125 and above.
ACO Modular 125 is manufactured in corrosion resistant 304 grade austenitic stainless steel that is fully pickle passivated to remove embedded iron and chromium depleted weld-zones. The enhanced corrosion resistance and extreme durability of fully pickle passivated stainless steel make the material suitable for many applications demanding a reliable, longlife performance.
Modular 125 channels are available with different edge details to suit varying load requirements and the surrounding floor material
  • Standard channel is suitable for tiled, concrete and epoxy resin floors in pedestrian and light industrial applications. Suitable for Load Class A15 to BS EN 1433.
  • PVC Infill channel, for the underside of the channel, can be infilled with a PVC strip to provide additional strength in dense traffic areas. PVC Infill is supplied loose for installation on site. Required for Load Class B125 and above (BS EN 1433).
  • Vinyl Seal is ideal for vinyl/flexible sheet flooring applications. The fully welded system is watertight and improves hygiene performance by eliminating cumbersome mechanical clamping systems.

Manufacturer: ACO Building Drainage
