ACO Modular 125 Security Channel Locking Kit

£71.33 Ex VAT

( £85.60Inc VAT )

Estimated lead-time 3-5 working days.
0
WISHLIST
Wishlist
Add to wishlist Added to wishlist (0)
  • Industry leading Our sales and technical team have over 20 years’ experience working with the industry leading rainwater systems available in the UK. Industry leading
    Our sales and technical team have over 20 years’ experience working with the industry leading rainwater systems available in the UK.
  • Expert advice Our friendly service and competitive prices combined with a step-by-step support approach, make for easy rainwater product selection. Expert advice
    Our friendly service and competitive prices combined with a step-by-step support approach, make for easy rainwater product selection.
  • Nationwide delivery Our delivery partners cover the whole of the UK (mainland only) so no matter where you are, we can get your order to you. Nationwide delivery
    Our delivery partners cover the whole of the UK (mainland only) so no matter where you are, we can get your order to you.
  • Premium quality Our aluminium, steel, cast iron, plastic & GRP rainwater systems are all sourced from the leading manufacturers in the UK to ensure they are of the highest quality. Premium quality
    Our aluminium, steel, cast iron, plastic & GRP rainwater systems are all sourced from the leading manufacturers in the UK to ensure they are of the highest quality.

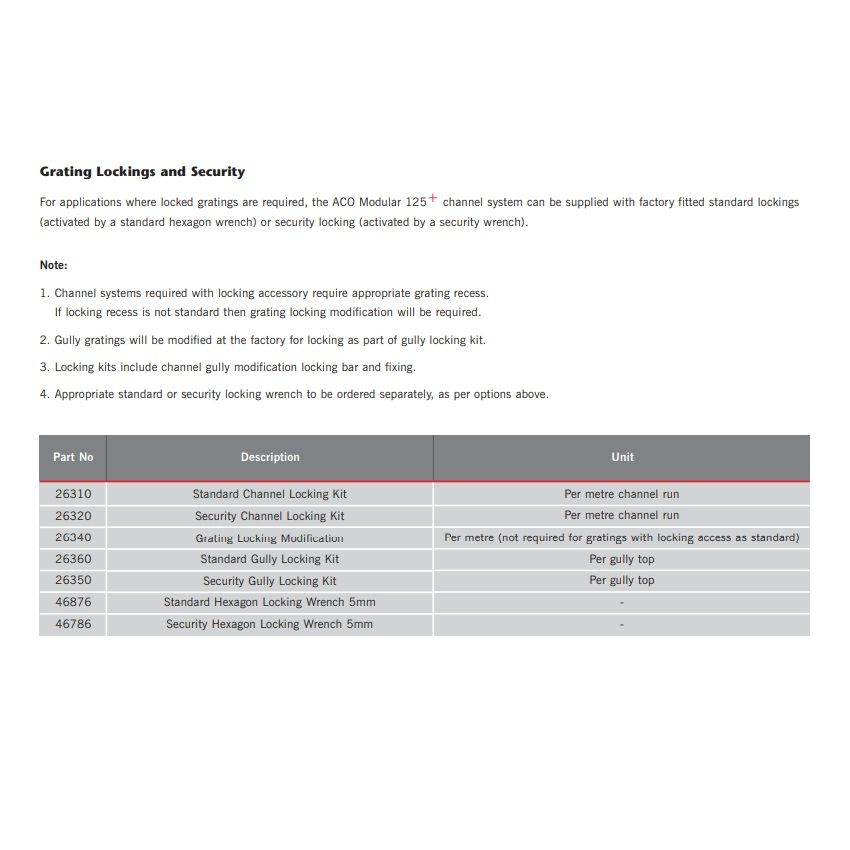

ACO Modular 125 Security Channel Locking Kit. For applications where locked gratings are required, the ACO Modular 125+ channel system can be supplied with factory fitted standard lockings
(activated by a standard hexagon wrench) or security locking (activated by a security wrench).
Note:
1. Channel systems required with locking accessory require appropriate grating recess.
If locking recess is not standard then grating locking modification will be required.
2. Gully gratings will be modified at the factory for locking as part of gully locking kit.
3. Locking kits include channel gully modification locking bar and fixing.
4. Appropriate standard or security locking wrench to be ordered separately, as per options above.
ACO Modular 125 is manufactured in corrosion resistant 304 grade austenitic stainless steel that is fully pickle passivated to remove embedded iron and chromiumdepleted weld-zones. The enhanced corrosion resistance and extreme durability of fully pickle passivated stainless steel make the material suitable for many applications demanding a reliable, longlife performance.
Modular 125 channels are available with different edge details to suit varying load requirements and the surrounding floor material
  • Standard channel is suitable for tiled, concrete and epoxy resin floors in pedestrian and light industrial applications. Suitable for Load Class A15 to BS EN 1433.
  • PVC Infil channel, for the underside of the channel, can be infilled with a PVC strip to provide additional strength in dense traffic areas. PVC Infill is supplied loose for installation on site. Required for Load Class B125 and above (BS EN 1433).
  • VinyalSeal is ideal for vinyl/flexible sheet flooring applications. The fully welded system is watertight and improves hygiene performance by eliminating cumbersome mechanical clamping systems.

Manufacturer: ACO Building Drainage
