AFST1-108.0/6-16E110
Teekay Couplings

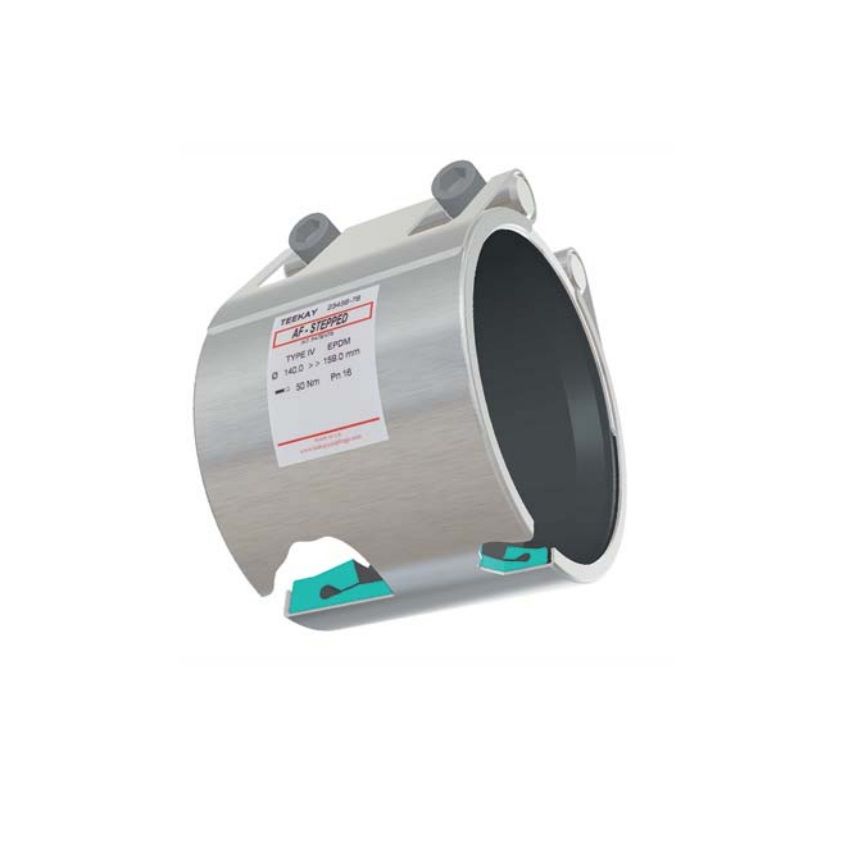

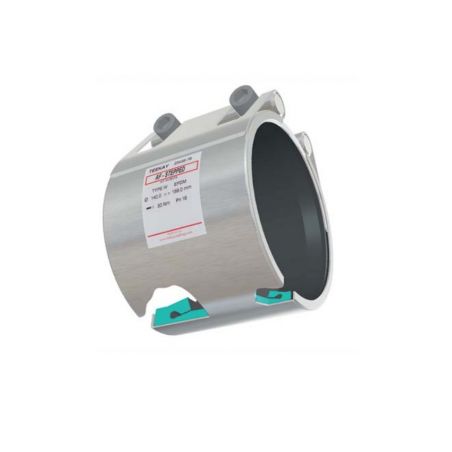

Teekay Axiflex Stepped Coupling Above Ground Type 1

£115.51 Ex VAT

( £138.61Inc VAT )

Estimated lead-time 5-7 working days.
0
WISHLIST
Wishlist
Add to wishlist Added to wishlist (0)
  • Industry leading Our sales and technical team have over 20 years’ experience working with the industry leading rainwater systems available in the UK. Industry leading
    Our sales and technical team have over 20 years’ experience working with the industry leading rainwater systems available in the UK.
  • Expert advice Our friendly service and competitive prices combined with a step-by-step support approach, make for easy rainwater product selection. Expert advice
    Our friendly service and competitive prices combined with a step-by-step support approach, make for easy rainwater product selection.
  • Nationwide delivery Our delivery partners cover the whole of the UK (mainland only) so no matter where you are, we can get your order to you. Nationwide delivery
    Our delivery partners cover the whole of the UK (mainland only) so no matter where you are, we can get your order to you.
  • Premium quality Our aluminium, steel, cast iron, plastic & GRP rainwater systems are all sourced from the leading manufacturers in the UK to ensure they are of the highest quality. Premium quality
    Our aluminium, steel, cast iron, plastic & GRP rainwater systems are all sourced from the leading manufacturers in the UK to ensure they are of the highest quality.

Teekay Axiflex Steeped Couplings, with EPDM Gasket, used to connect plain ended pipes, of different OD's and materials, in pressurised applications above ground (INTERNAL USE ONLY).

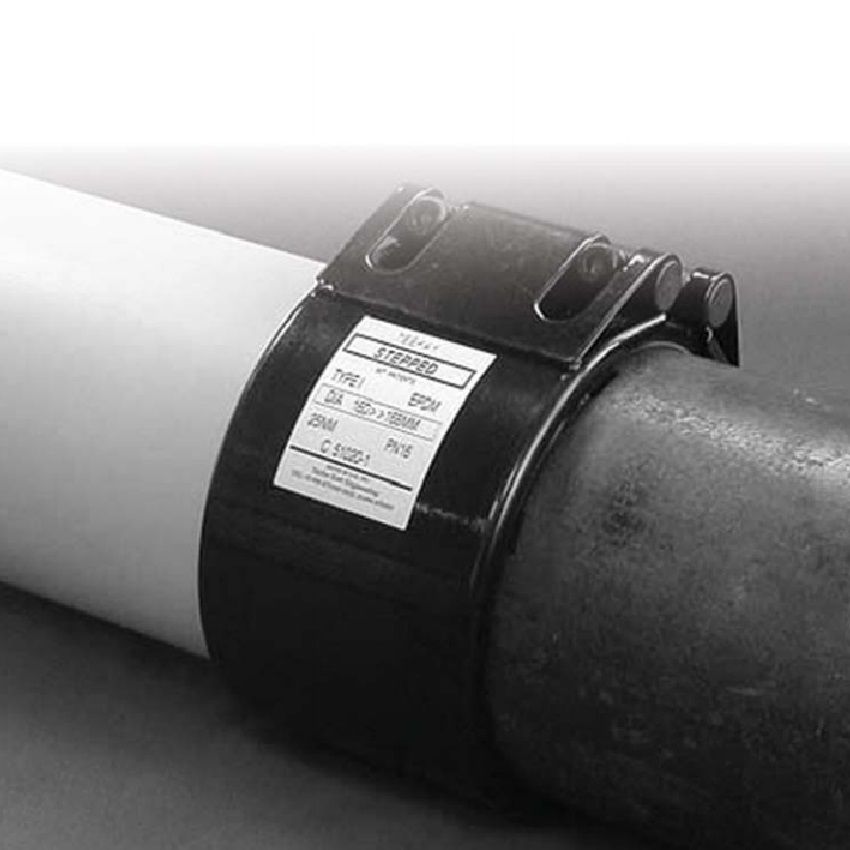

The Teekay Stepped coupling is a “problem-solver” on any site with the ability to join pipes of different ODs and different materials.

Typical applications:

- refurbishments (where the contractor is connecting a piping system back into the original layout)

- repairs to old water mains (where the pipe is so corroded it needs to be replaced with a new material in metric size)

- chamber connections

- pipe material transitions

- joining metallic pipe to plastic pipe

Type 1 specification for above ground:

Casing: AISI 304 / DIN 1.4301

Fasteners:Alloy Steel, Coated

Gasket: EPDM/ NBR/ HNBR/ Silicone

Manufacturer: Teekay
