THS/75
Caroflow

Caroflow Trapped Horizontal Floor Drain Body

£165.90 Ex VAT

( £199.08Inc VAT )

Estimated lead-time 2-3 working days.
0
WISHLIST
Wishlist
Add to wishlist Added to wishlist (0)
  • Industry leading Our sales and technical team have over 20 years’ experience working with the industry leading rainwater systems available in the UK. Industry leading
    Our sales and technical team have over 20 years’ experience working with the industry leading rainwater systems available in the UK.
  • Expert advice Our friendly service and competitive prices combined with a step-by-step support approach, make for easy rainwater product selection. Expert advice
    Our friendly service and competitive prices combined with a step-by-step support approach, make for easy rainwater product selection.
  • Nationwide delivery Our delivery partners cover the whole of the UK (mainland only) so no matter where you are, we can get your order to you. Nationwide delivery
    Our delivery partners cover the whole of the UK (mainland only) so no matter where you are, we can get your order to you.
  • Premium quality Our aluminium, steel, cast iron, plastic & GRP rainwater systems are all sourced from the leading manufacturers in the UK to ensure they are of the highest quality. Premium quality
    Our aluminium, steel, cast iron, plastic & GRP rainwater systems are all sourced from the leading manufacturers in the UK to ensure they are of the highest quality.

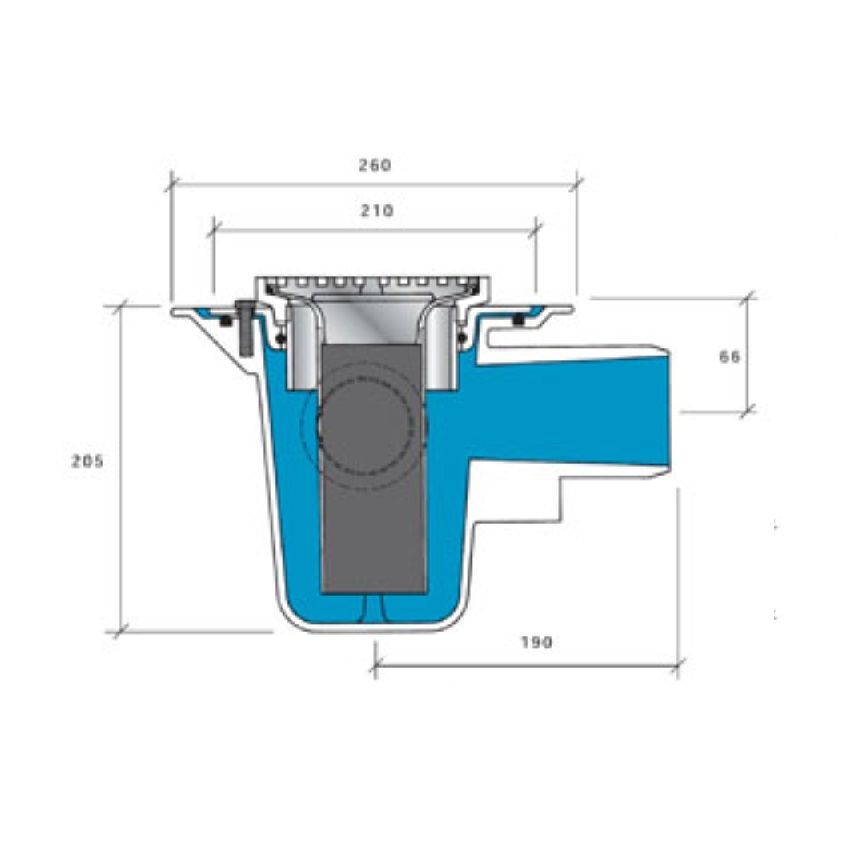

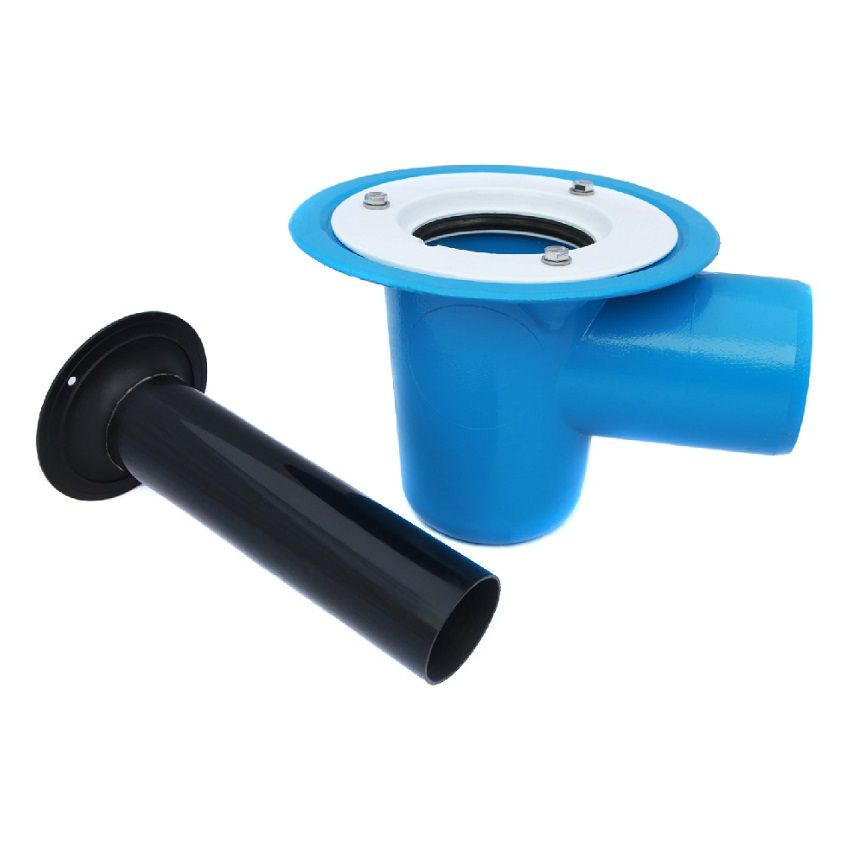

Caroflow Aluminium Trapped Horizontal Floor Drain Body, available in both 75mm & 100mm outlet sizes, all grating assemblies sold separately.

Caroflow Trapped Horizontal Floor Outlets are manufactured in electrostatically coated, pre-treated, LM6 Aluminium (Corrosion Resistant) Silicon alloy, all with stainless steel fixings. The integral trap, supplied with each body assembly, is designed to allow its overall height to be trimmed to suit the finished level and each Body Assembly requires the specification of a separate Grating Assembly.

The grating assemblies for Trapped Floor Outlets are high quality, machined Stainless Steel castings. The gratings have a 110mm O/D throat that gives full and un-restricted access to the body unit for cleaning and rodding out.
Connections
Trapped 75mm floor outlets are suitable for direct connection to 75mm nominal bore UPVC pipework (82mm O/D).  100mm outlets connect to 100mm nominal bore UPVC pipework (110mm O/D). Adaptors for connections to other size pipe work sold separately.
Manufacturer: Caroflow

Product Code: THS/75/100
