Pam Building

Pam Building Ensign Stainless Steel Rapid Coupling EC002NG

£14.68 Ex VAT

( £17.62Inc VAT )

Estimated lead-time 5-7 working days.
0
WISHLIST
Wishlist
Add to wishlist Added to wishlist (0)
  • Industry leading Our sales and technical team have over 20 years’ experience working with the industry leading rainwater systems available in the UK. Industry leading
    Our sales and technical team have over 20 years’ experience working with the industry leading rainwater systems available in the UK.
  • Expert advice Our friendly service and competitive prices combined with a step-by-step support approach, make for easy rainwater product selection. Expert advice
    Our friendly service and competitive prices combined with a step-by-step support approach, make for easy rainwater product selection.
  • Nationwide delivery Our delivery partners cover the whole of the UK (mainland only) so no matter where you are, we can get your order to you. Nationwide delivery
    Our delivery partners cover the whole of the UK (mainland only) so no matter where you are, we can get your order to you.
  • Premium quality Our aluminium, steel, cast iron, plastic & GRP rainwater systems are all sourced from the leading manufacturers in the UK to ensure they are of the highest quality. Premium quality
    Our aluminium, steel, cast iron, plastic & GRP rainwater systems are all sourced from the leading manufacturers in the UK to ensure they are of the highest quality.

Pam Building Ensign Stainless Steel Coupling Rapid, available in 50mm, 70mm, 100mm, 125mm, 150mm, 200mm, 250mm & 300mm diameter, for Above Ground.

Technical Specification

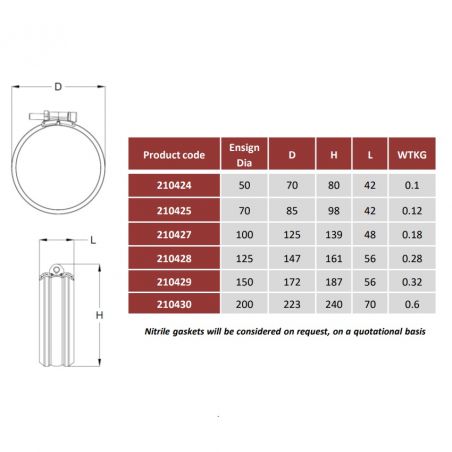

Product code: See Table

Standard: BS EN 877: 1999/AC: 2008

Material: Stabilized Chrome Steel, Mat No 1.4510/11

Pressure: 5bar Restained / 1bar Un-restrained – 10bar with EC002GC

Bolts: Mild Steel Grade 8.8 Dacromet 500B Coated 6mm Socket

Cap Set Screws (M8)

Nuts: Mild Steel Dacromet 500B Coated Hex Head Nuts (M8)

Gasket Material: EPDM Rubber EN 681

Torque Setting: 20N/m

Coupling Deflection: +/-3°

System Fire Rating: A1

Water Temperature Rating: 95° +/- 2° (Resistance to Hot Water in 24hr cycle constant)

Manufacturer: Pam Building

Product Codes:
