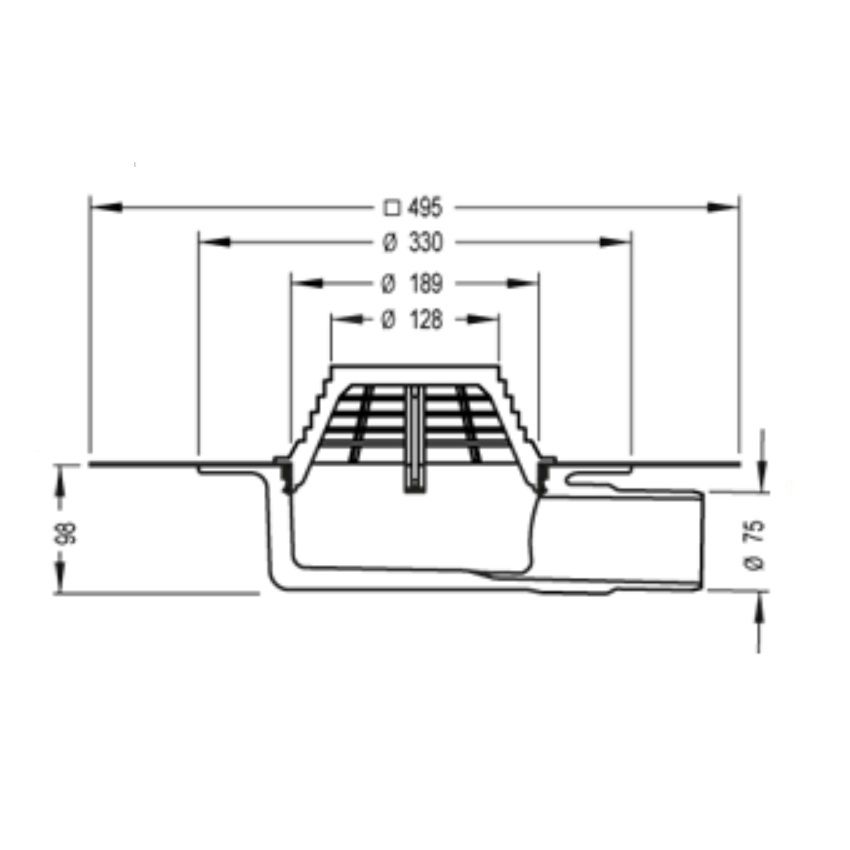

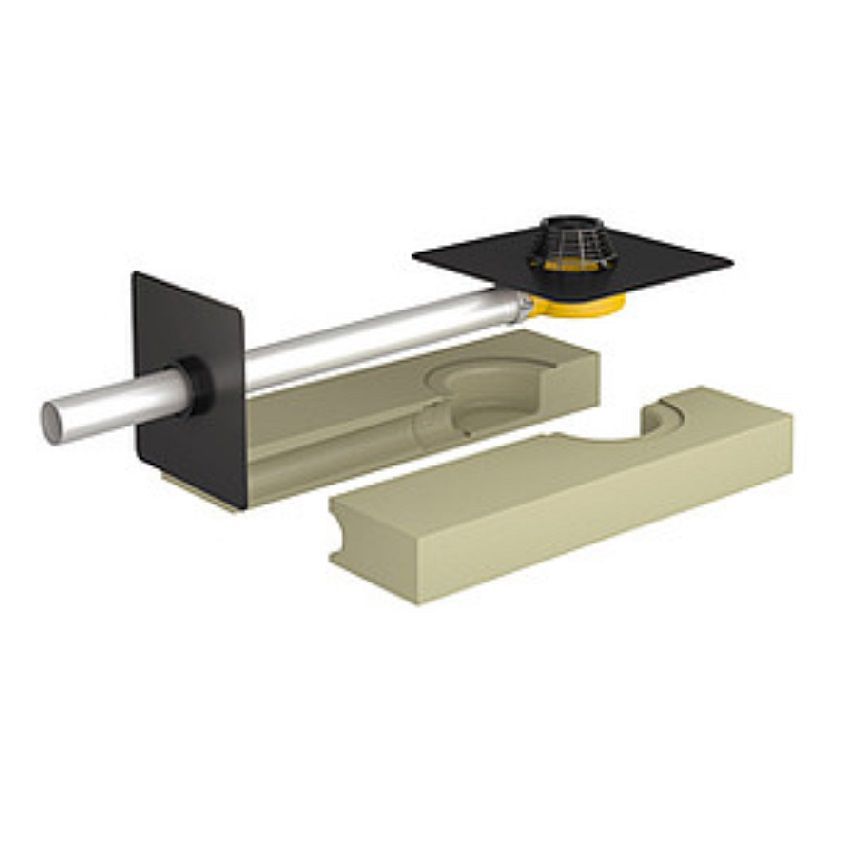

Sita Indra Parapet Roof Outlet set consisting of inlet pot, safety clamp, vapour barrier plate, dome grate and insulating body in two different materials & membranes.
Inlet pot with integrated selected connection sleeve to DIN EN 1253-2 with enhanced quality standard to the RAL quality mark GZ-694, 1m stainless steel connection pipe DN/OD* 70/75.
Insulating body made of polyurethane = 1000 x 500 x 120mm
Insulating body made of Mineral Wool 980 x 480 x 120mm, inclination gradient 1 degree.
Manufacturer; Sita
Product Code: 107300 / 107310 / 108300 / 108310
Download Guides
Sita Turbo Parapet Roof Outlet Steam Vapour Barrier Flex
Sita Turbo Parapet Roof Outlet Insulating Body
Sita Turbo Parapet Roof Outlet Connection Sleeve Bitumen Underlay
