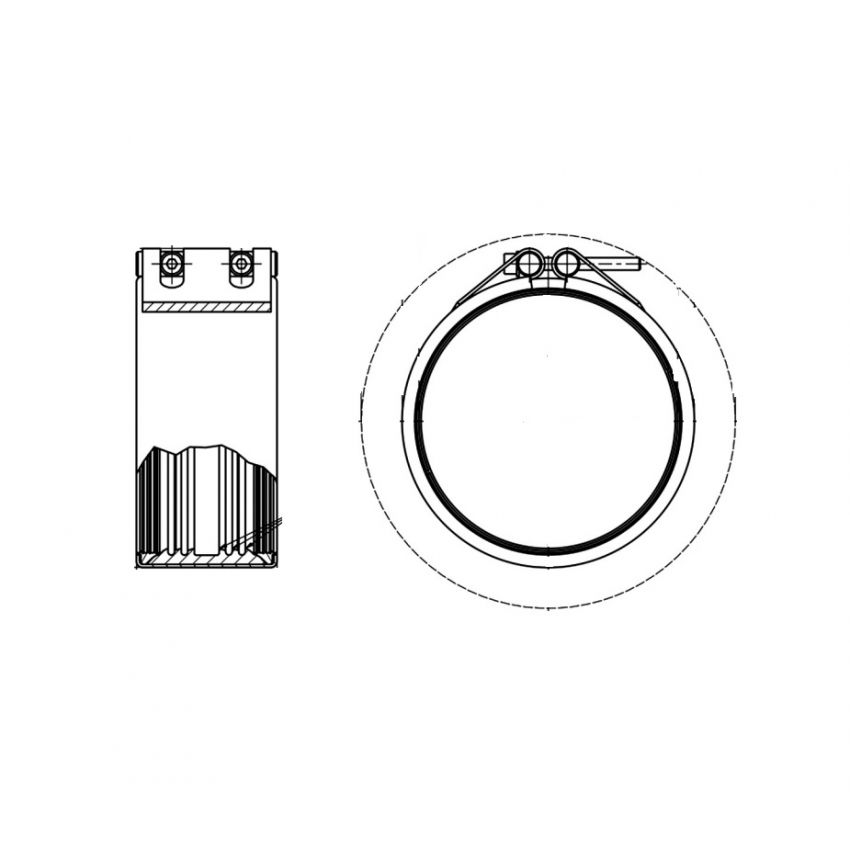

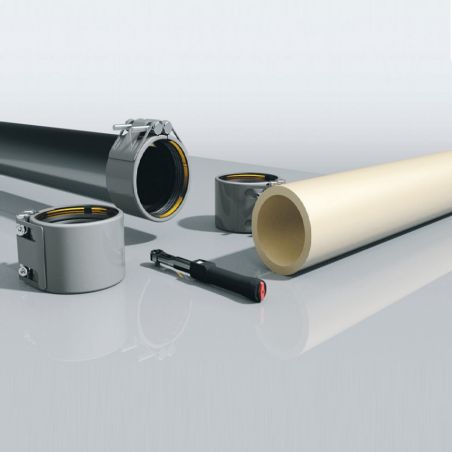

Teekay Plastlock Couplings, with EPDM Gasket, used to connect plastic pipes in pressurised applications below ground. Size ranges from 40mm- 315mm diameter.
Plastlock couplings are suitable for connection onto plastic pipe materials made of Polyethylene, Poly-butylene, PVC-C, PVC-U and Polypropylene.
Type 2 specification for below ground:
Casing: AISI 304 / DIN 1.4301
Fasteners: AISI 316 / 316L
Gasket: EPDM/ NBR/ HNBR/ Silicone
Manufacturer: Teekay
