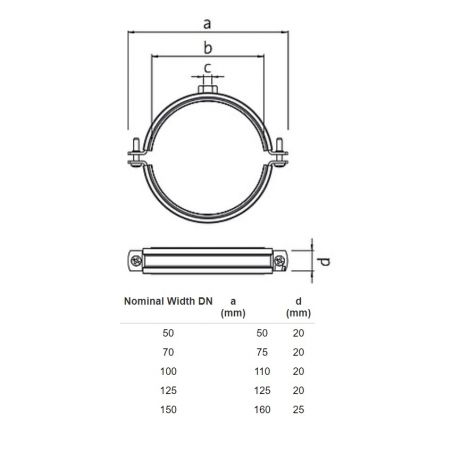

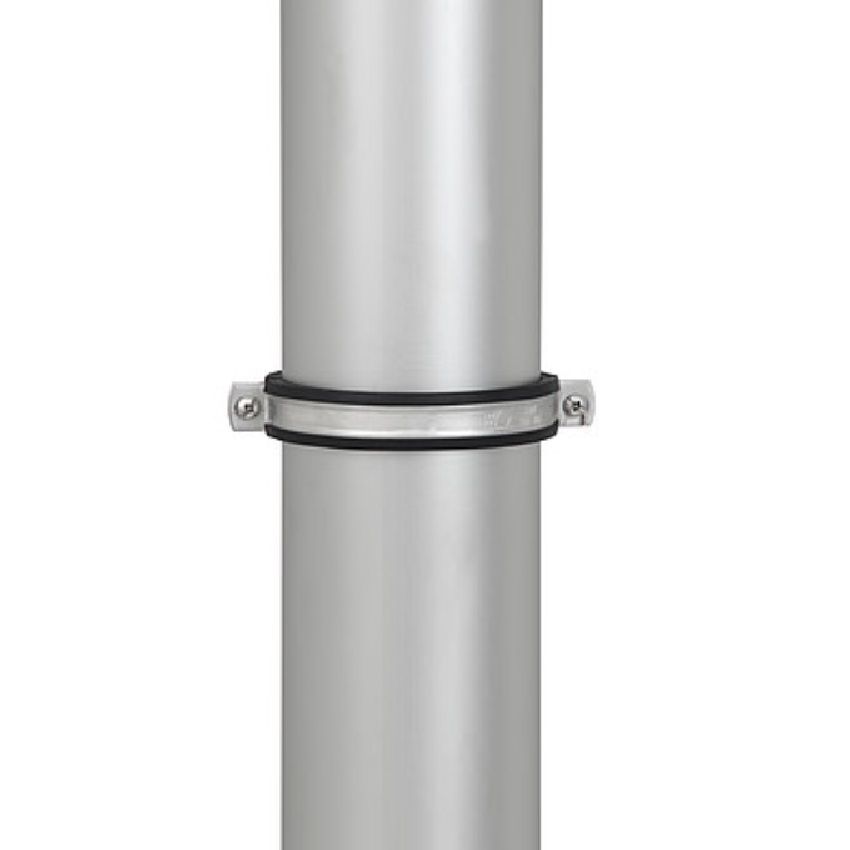

Sita Attika Stainless Steel Pipe Clamp for fixing the pipe to the building, with a M8 threaded connection for DN70 and M10 threadted connection for DN100 to DN 160. sizes from 75mm up to 160mm.
Made of stainless steel to DIN EN 1124-1/2. Plug-in pipe system with a seal made of EPDM mounted in the socket at the factory. Sharp end with a 20° phase to simplify assembly. Pipes and shaped parts completely dip treated to ensure a smooth matt silver surface.
Up to DN 125, the wall thickness is 1 mm, for DN 150 the wall thickness is 1.25 mm.
Manufacturer; Sita
Product Code: 74200075/74200011/74200012/74200016
