HBF110D
Harmer Building Drainage

Harmer Aluminium Double Flap Drain

£91.40 Ex VAT

( £109.68Inc VAT )

Estimated lead-time 10-15 working days.
0
WISHLIST
Wishlist
Add to wishlist Added to wishlist (0)
  • Industry leading Our sales and technical team have over 20 years’ experience working with the industry leading rainwater systems available in the UK. Industry leading
    Our sales and technical team have over 20 years’ experience working with the industry leading rainwater systems available in the UK.
  • Expert advice Our friendly service and competitive prices combined with a step-by-step support approach, make for easy rainwater product selection. Expert advice
    Our friendly service and competitive prices combined with a step-by-step support approach, make for easy rainwater product selection.
  • Nationwide delivery Our delivery partners cover the whole of the UK (mainland only) so no matter where you are, we can get your order to you. Nationwide delivery
    Our delivery partners cover the whole of the UK (mainland only) so no matter where you are, we can get your order to you.
  • Premium quality Our aluminium, steel, cast iron, plastic & GRP rainwater systems are all sourced from the leading manufacturers in the UK to ensure they are of the highest quality. Premium quality
    Our aluminium, steel, cast iron, plastic & GRP rainwater systems are all sourced from the leading manufacturers in the UK to ensure they are of the highest quality.

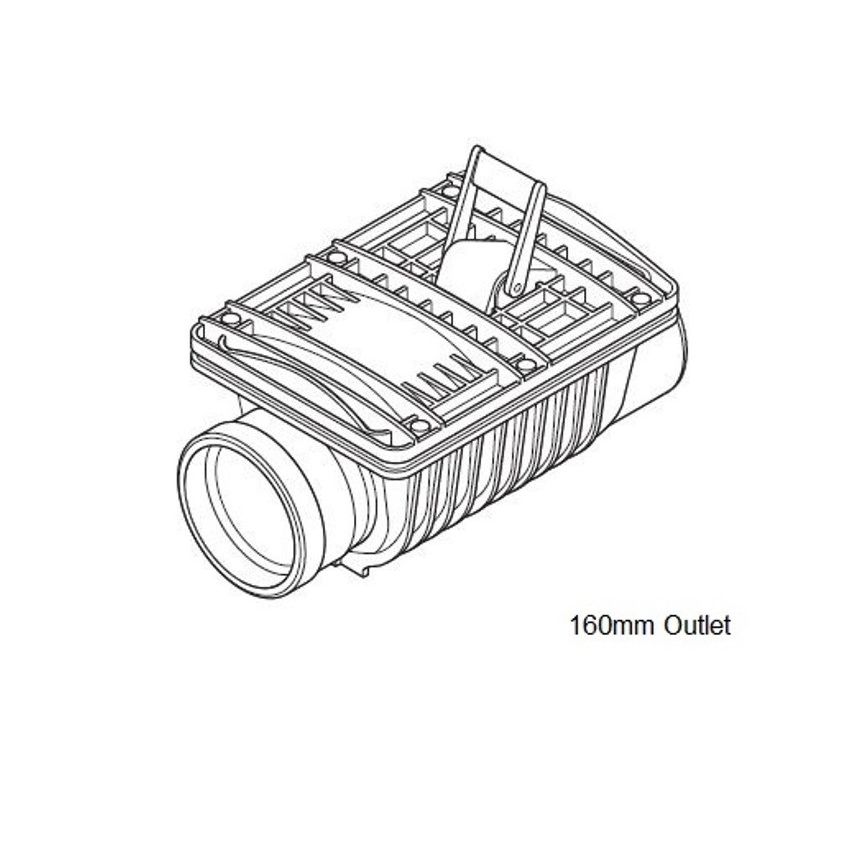

Harmer Aluminium Double Flap Drain, available in 110mm and 160mm size Outlet.

Harmer Aluminium Pipe Adaptors, available in 100mm diameter.

Harmer Aluminium Floor Drain Applications
For solid or suspended floor drain applications in screed, tile or flexible sheet flooring
Available trapped or untrapped, with vertical or horizontal spigot connection
Options with or without side inlets for connection from sink, bath, shower wastes, etc
Harmer Pipe Adaptors provide an efficient way of incorporating a grate and trapped pipe connection within a suspended floor

Harmer Aluminium Floor Drain Performance, Materials & Finishes
Lightweight, durable and non-corrodible
High flow performance, exceeding current British Standard requirements
Direct connection to drainage system possible via 110mm spigot outlet
Sliding throat permits vertical (25mm-115mm) and rotational adjustment to the finest tolerances
Circular, square and flexible sheet grates available as standard
Trap assembly consists of a demountable funnel and cap for ease of cleansing
Aluminium is 100% recyclable
Drain bodies and clamp rings precision cast in aluminium silicon alloy LM6 to BSEN 1559:1997
BBA approved powder coating on drain bodies and clamp ring
Grates and bezels are available in stainless steel or nickel bronze, in a new range of styles including: Plain Cap, Star Grate, Concentric
Ring, Compact Ring, Anti-ligature and Solid Plate

Installation & Fixing
Easy to fit with a single unit grate, bezel and throat assembly installed into the insitu drain body
Easy to maintain as top accessible via removal of trap and trap cup in bezel
Manufacturer: Harmer Drainage Systems

Product Code: HBF110D/ 160D
